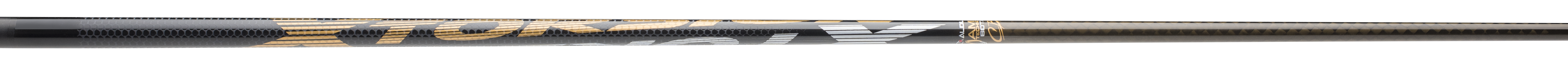

XTORSION® Copper

Mid Launch and Low Spin
MSRP
$350.00USD

The ALDILA® XTORSION® Copper features a stiff tipped, Counter Balanced design along with a new and unique woven graphite material on the outer layer of the shaft at the tip-section. This Multi-Axial Material Bias Angle (MAMBA®) Technology places a high-tech material on the shaft in a +/- 45 degree fiber orientation. This unique use of a flat weave material on the exterior of the shaft provides significantly improved torsional stability to this counter weighted shaft in the lower half (tip-section) where the greatest percentage of twisting occurs during the swing and at impact.

  • Specifications

    ITEM DESCRIPTION

    FLEX

    LENGTH(in)

    WEIGHT(g)

    TIP O.D.(in)

    TIP LENGTH(in)

    BUTT O.D.(in)

    TORQUE(degrees)

    KICK PT.

    TIP TYPE

    TRIM CODE

    XTORSION™ Copper 50

    R

    46.0

    56

    0.335

    3.0

    0.610

    4.8

    MID/HIGH

    PARALLEL

    F

    XTORSION™ Copper 60

    S

    46.0

    67

    0.335

    3.0

    0.610

    4.2

    MID/HIGH

    PARALLEL

    F

    XTORSION™ Copper 70

    X

    46.0

    70

    0.335

    3.0

    0.615

    3.3

    MID/HIGH

    PARALLEL

    F

    XTORSION™ Copper 70

    TX

    46.0

    70

    0.335

    3.0

    0.615

    2.9

    MID/HIGH

    PARALLEL

    F

  • Technology

    High Balance Point

    By using innovative materials and creating slightly thicker walls toward the butt-end of the shaft we raised the balance point of the shaft which creates the potential for lighter swing weights, increased head-speed and distance.

    Multi-Axial Material Bias Angle (MAMBA®) Technology

    Multi-Axial Material Bias Angle (MAMBA®) Technology places a high-tech, flat weave material on the shaft’s lower half exterior, where the most twisting occurs during the swing and at impact. MAMBA® Technology improves torsional stability and spin control where it’s needed the most.

  • Fitting

    Driver Speed (mph)/Driver Carry (yds)

    80/210

    81-90/210-239

    91-105/240-259

    106+/260+

    XTORSION® Copper 50

    R

    XTORSION® Copper 60

    S

    XTORSION® Copper 70

    X/TX

  • Tip Trimming Information

    Trim Code

    Procedure

    A

    Trim to length from butt end.

    B

    Tip Trim in 1/2" increments (3-PW).

    C

    Tip Trim in 1/2" increments (3W-7W).

    D

    Tip Trim Driver 2", 3W 2-1/2", 4W 3", 5W-7W 3-1/2".

    E

    Tip Trim 2", then 1/2" increments (3-PW).

    F

    No Tip Trim for Driver. Trim to length from butt end. Tip Trim Fairway Woods 1", then to length from butt end.

    G

    Tip Trim 2H-3H 0", 4H 1/2", 5H and below 1"
